COATING.MACHINES
Basics
High quality multipurpose coating machines and lines for applications of all 12 technical textile groups. Effective solutions for applications with liquids, pastes, lacquers and foams on substrates such as textiles, plastics, nonwovens, carpets, glass, foils and other innovative materials.
Take advantages of our pioneering technologies like the world-famous ZIMMER MAGNET SYSTEM PLUS, which guarantees a 100% uniform application for any coating, laminating and lacquering. Each coating system is tailored to the individual needs of our customers to ensure highest quality results.
Coating Machines
All coating machines and lines are adapted, designed and manufactured according to our customer’s individual needs.

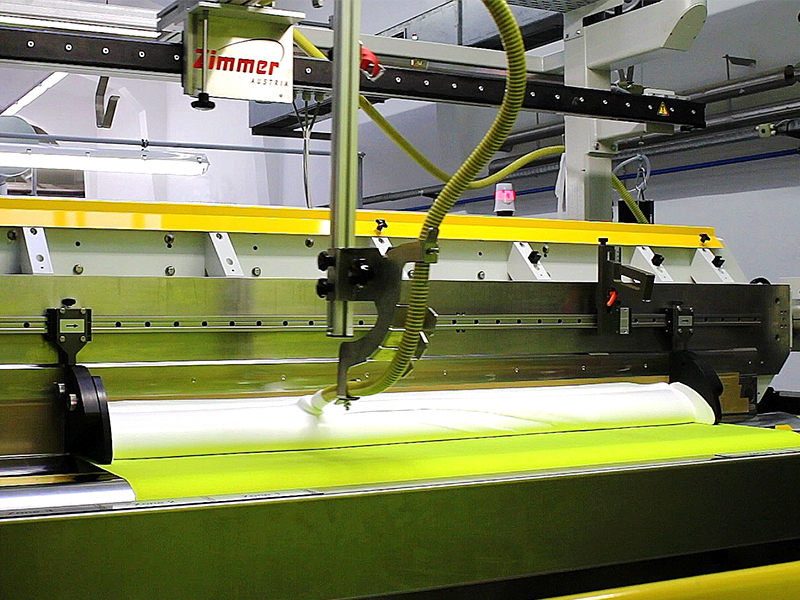

MAGNOROLL Multipurpose Coating Machine
The ZIMMER AUSTRIA MAGNOROLL modules are:
- MAGNOROLL Coating Technologies: Executed either as Magnetic Low-Add-On or Magnetic Direct Roll coating system, in working widths: 500 – 5600 mm
- Single or Double Screen Coating: equipped with magnet roll rods or magnet blade squeegee, in working widths: 500 – 3200 mm
- MAGNOKNIFE Over-Roll or Over-Air coating: executed with reversible high precision knife holder, equipped with two knives, each containing two blades (various blade executions possible), working widths: 500 – 5600 mm
- MAGNOJET: closed system for coating with paste or any kind of foam (incl. instable foams) in working widths: 500 – 5600 mm
- VARIOPRESS: open system for stable and metastable foams

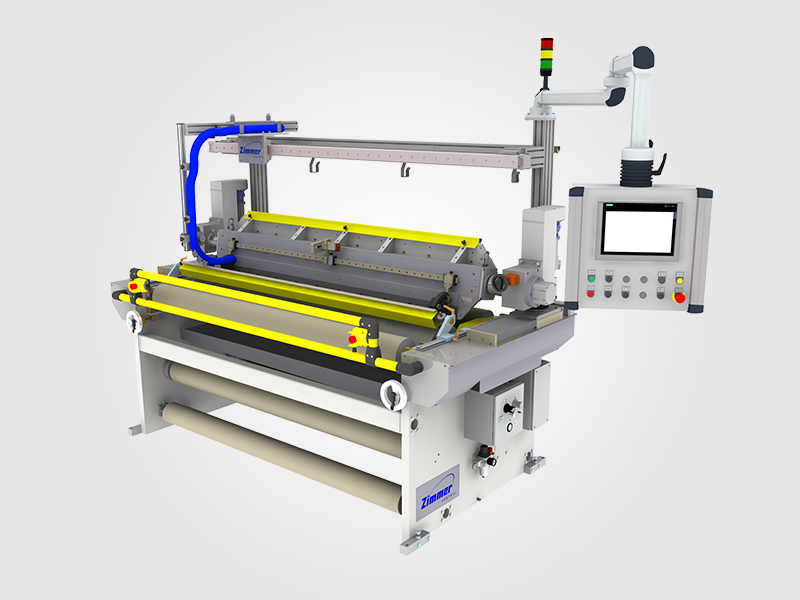

TRIPLEXCOAT Coating Machine
- Cost-effective multipurpose coating machine
- With universal take-up system for KNIFE coating, MAGNOJET foam coating and ROTARY.SCREEN printing/ coating
- Optimal solution for all standard applications. Integration possible into any existing coating line or as an integral part of a custom-made coating line
- KNIFE and MAGNOJET working widths: 500 – 3400 mm
- Screen Coating with blade squeegee: maximum 2000 mm

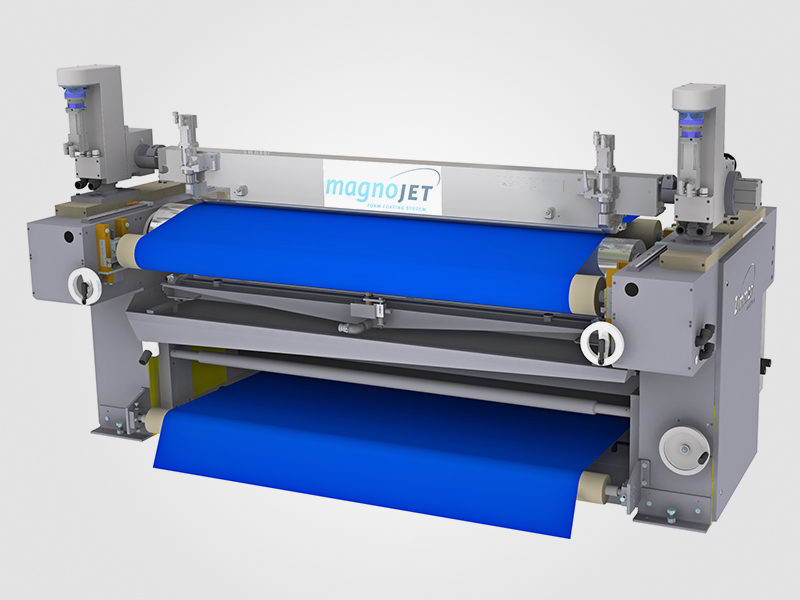

MAGNOJET Foam Coating System
- Closed coating system, with controlled application:
- For paste with a constant substance feeding pump with an inline flow meter unit.
- For foam with a foam mixing unit with software controlled weight measuring system.
- Advantages: Avoids the evaporation of liquids, no pollution, no creation of foam during paste application and no extra amounts of application media necessary and hassle-free processing of instable foams.

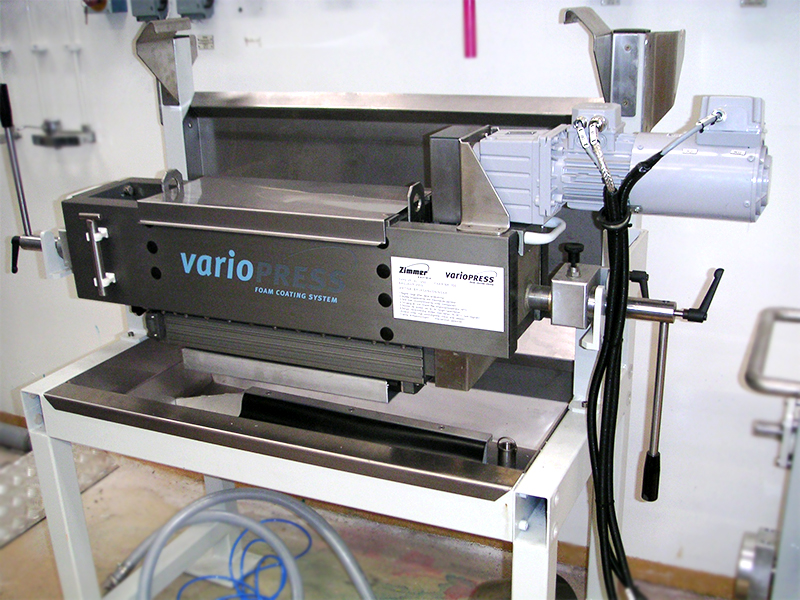

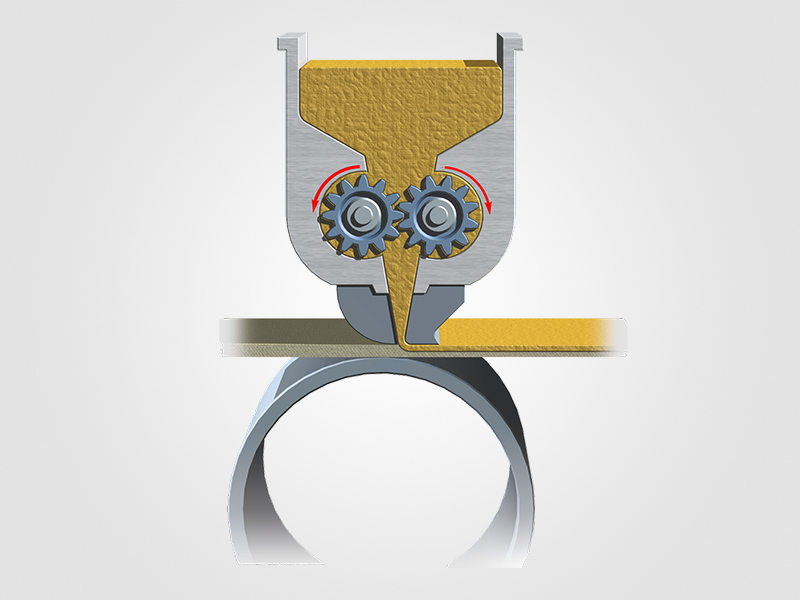

VARIOPRESS Foam Coating System
- 100% control of the foam application amount independent of line speed, web tension and/or absorbance characteristics of the coated web.
- Over-Air or Over-Roll application possible
- Tooth gears driven with step-less adjustable speed.
- Installation possible at the entry of any dryer or coating line.

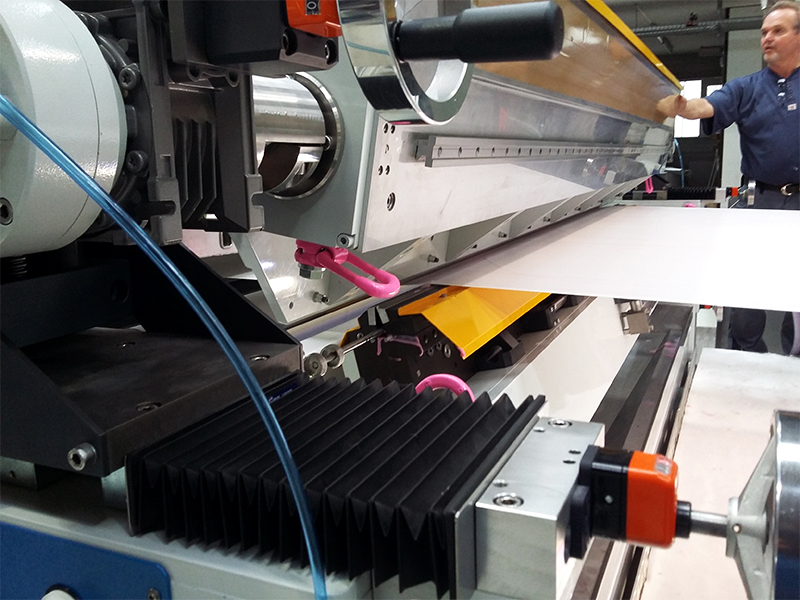

TWINCOAT
- TWINCOAT for coating simultaneously on both sides of the substrate
- In vertical and horizontal execution
- For any application width: 1100 to 5400 mm
LAB COATING MACHINES
- All our application systems are also available as laboratory equipment
- Working widths: 500 up to 1000 mm
Applications
For applications of all technical textile groups such as Agrotech, Buildtech, Clothtech, Medtech, Mobiltech, Oekotech, Geotech, Hometech, Indutech, Packtech, Protech, Sporttech.
